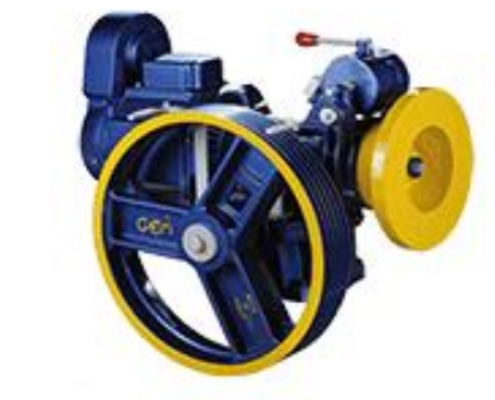

GEM HW140C

This motor gear box is desigend and manufactured in compliance with European lift directive 95/16/EC-EN81.1,for the 8 persons lift and speed up to 1.24 /m/s.



Description

Worm whee& Worm shaft,running on high precision utmost quality ball bearings for the axial constrain.Noise level below 60 Db and one of the  outstanding characteristic is the possibility to disassemble completely  the machine into sub-components and reinstall them easily in the site.Horizontal vibration level minor than 0,7 mm/s (complying with IEC 34 14; CEI 2-23).

This motor gear box is produced by Gem company in Italy and distributed in all around Iran by Behran lift Co.as the exclusive sales agent for Gem company's products in this country.

Technical data

Interasse - Distance between slow and fast shafts	140 mm
Carico statico max. - Max static load	3.100 Kg (senza supporto) (without external support)
Coppia massima in uscita - Max output torque	1.425 Nm
Rapporti di riduzione - Reduction ratio	1/58 – 1/53 – 1/44 – 2/70
Potenza motore max. - Max motor power	6.8 kWasy (50Hz – AC2) – 7.6 kWasy (50Hz - VVVF)
Tipo motore - Motor type	AC1, AC2, ACVV, VVVF
Efficienza media riduttore - Average gear efficiency	0.75
Diametri pulegge di trazione - Diameter of traction sheave	mm 480, mm 560, mm 600
Elettromagnete freno - Electromagnetic brake	24V, 48V, 60V, 110V, 200V
Olio sintetico - Synthetic oil	3,5 lt (lubrificato a vita) - (lubricated for life)
Peso medio argano - Average weight of the machine	260 Kg



Useful load vs. speed table - examples (50 hz - 1500 rpm)
